MC74LVX245

Features: • High Speed: tPD = 4.7ns (Typ) at VCC = 3.3V• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C• Power Down Protection Provided on Inputs• Balanced Propagation Delays• Low Noise: VOLP = 0.8V (Max)• Pin and Function Compatible with Other Standard Log...

product image

MC74LVX245 Picture
See larger image
SeekIC No. : 004417127 Detail

MC74LVX245: Features: • High Speed: tPD = 4.7ns (Typ) at VCC = 3.3V• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C• Power Down Protection Provided on Inputs• Balanced Propagation D...

MC74LVX245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LVX245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed: tPD = 4.7ns (Typ) at VCC = 3.3V
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V


Application

· Do not force a signal on an I/O pin when it is an active output, damage may occur.
· All floating (high impedence) input or I/O pins must be fixed by means of pull up or
    pull down resistors or bus terminator ICs.
· A parasitic diode is formed between the bus and VCC terminals. Therefore,
    the LVX245 cannot be used to interface 5V to 3V systems directly.




Pinout

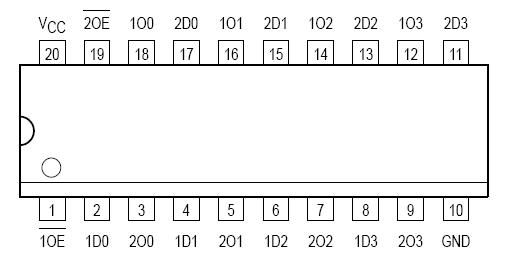

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7.0 V
VIN DC Input Voltage -0.5 to +7.0 V
VOUT DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current -20 mA
IOK DC Output Diode Current ± 20 mA
IOUT DC Output Current per Pin ± 25 mA
ICC DC Supply Current, VCC and GND Pins ±75 mA
Tstg Power Dissipation 180 mW
TSTG Storage Temperature -65 to +150 °C



Description

The MC74LVX245 is an advanced high speed CMOS octal bus transceiver. MC74LVX245 is intended for twoway asynchronous communication between data buses. The direction of data transmission is determined by the level of the T/R input. The output enable pin (OE) can be used to disable the device, so that the buses are effectively isolated. All inputs are equipped with protection circuits against static discharge
