MC74LVX244DT

Buffers & Line Drivers 2-3.6V Octal 3-State

product image

MC74LVX244DT Picture
See larger image
SeekIC No. : 00410534 Detail

MC74LVX244DT: Buffers & Line Drivers 2-3.6V Octal 3-State

MC74LVX244DT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LVX244DT
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Input Lines : 8 Number of Output Lines : 8
Polarity : Non-Inverting Supply Voltage - Max : 3.6 V
Supply Voltage - Min : 2 V Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT Package / Case : TSSOP-20
Packaging : Tube

Description

Polarity : Non-Inverting
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Supply Voltage - Min : 2 V
Number of Input Lines : 8
Number of Output Lines : 8
Package / Case : TSSOP-20
Supply Voltage - Max : 3.6 V
Packaging : Tube


Features:

• High Speed: tPD = 4.7ns (Typ) at VCC = 3.3V
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V


Pinout

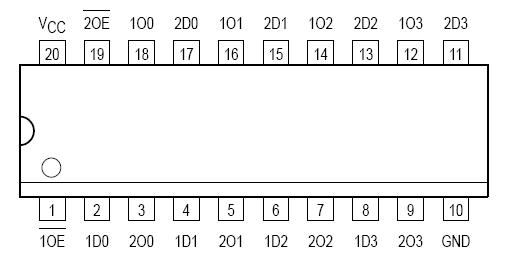

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7.0 V
VIN DC Input Voltage -0.5 to +7.0 V
VOUT DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current -20 mA
IOK DC Output Diode Current ± 20 mA
IOUT DC Output Current per Pin ± 25 mA
ICC DC Supply Current, VCC and GND Pins ±75 mA
Tstg Power Dissipation 180 mW
TSTG Storage Temperature -65 to +150 °C



Description

The MC74LVX244 is an advanced high speed CMOS noninverting 3state octal bus buffer and has two active low output enables. It is also designed to work with 3state memory address drivers, etc. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.




Parameters:

Technical/Catalog InformationMC74LVX244DT
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Logic TypeLine Driver, Non-Inverting
Package / Case20-TSSOP
PackagingTube
Mounting TypeSurface Mount
Number of Bits per Element4
Number of Elements2 - Dual
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 3.6 V
Current - Output High, Low4mA, 4mA
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC74LVX244DT
MC74LVX244DT
