Product Details

Description

Pinout

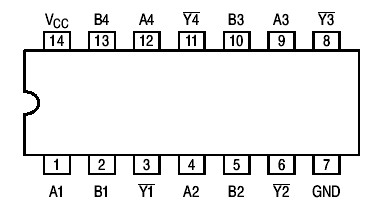

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	-0.5 to +7.0	V
V_I	DC Input Voltage	-0.5 to +7.0	V
V_O	DC output Voltage	-0.5 to V_CC + 0.5	V
V_IK	DC Input Diode Current	- 20	mA
I_OK	DC Output Diode Current	± 20	mA
I_O	DC Output Current	± 25	mA
I_CC	DC VCC or Ground Current	± 50	mA
I_D	Power Dissipation	180	mW
T_stg	Storage Temperature	-65 to +150	°C

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions not implied.
