MC74LVQ574

PinoutSpecifications Symbol Parameter Value Condition Unit VCC DC Supply Voltage 0.5 to +7.0 V VI DC Input Voltage 0.5 VI VCC + 0.5V V VO DC Output Voltage 0.5 3 VO VCC + 0.5 Output in HIGH or LOW State V IIK DC Input Diode Current 20 VI = 0.5V mA +20 VI...

product image

MC74LVQ574 Picture
See larger image
SeekIC No. : 004417106 Detail

MC74LVQ574: PinoutSpecifications Symbol Parameter Value Condition Unit VCC DC Supply Voltage 0.5 to +7.0 V VI DC Input Voltage 0.5 VI VCC + 0.5V V VO DC Output Voltage 0.5 3 VO VC...

MC74LVQ574 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LVQ574
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

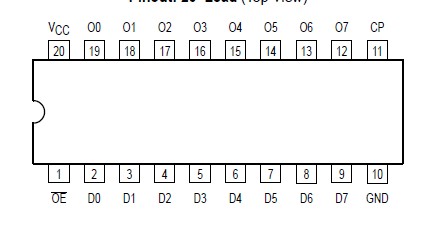

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage 0.5 to +7.0   V
VI DC Input Voltage 0.5 VI VCC + 0.5V   V
VO DC Output Voltage 0.5 3 VO VCC + 0.5 Output in HIGH or LOW State V
IIK DC Input Diode Current 20 VI = 0.5V mA
+20 VI = VCC + 0.5V mA
IOK DC Output Diode Current 20 VO = 0.5V mA
+20 VI = VCC + 0.5V mA
IO DC Output Source/Sink Current +50   mA
ICC DC Supply Current Per Supply Pin ±400   mA
IGND DC Ground Current Per Ground Pin ±400   mA
TSTG Storage Temperature Range 65 to +150   °C



Description

The MC74LVQ574 is a high performance, noninverting octal Dtype flipflop operating from a 2.7 to 3.6V supply. The MC74LVQ574 is suitable for TTL level bus oriented applications where a memory element is required.

Current drive capability is 12mA at the outputs. The MC74LVQ574 consists of 8 edgetriggered flipflops with  ndividual Dtype inputs and 3state true outputs. The buffered clock and buffered Output Enable (OE) are common to all flipflops. The eight flipflops will store the state of individual D inputs that meet the setup and hold time requirements on the LOWtoHIGH Clock (CP) transition. With the OE LOW, the contents of the eight flipflops are available at the outputs. When the OE is HIGH, the outputs go to the high impedance state. The OE input level does not affect the operation of the flipflops.
