Product Details

Description

Pinout

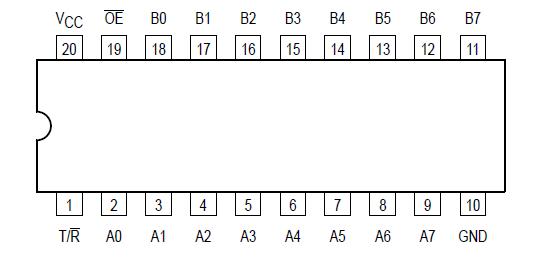

Connection Diagram

Specifications

Symbol	Parameter	Value	Condition	Unit
V_CC	DC Supply Voltage	0.5 to + 7.0		V
V_I	DC Input Voltage	0.5 V_IV_CC + 0.5V		V
V_O	DC Output Voltage	0.5 V_O V_CC + 0.5	Output in HIGH or LOW State	V
I_IK	Input Diode Current	-20	V_I= 0.5V	mA
I_IK	Input Diode Current	+20	V_I= V_CC + 0.5V	mA
I_OK	Output Diode Current	-20	V_O = 0.5V	mA
I_OK	Output Diode Current	+20	V_I = V_CC + 0.5V	mA
I_O	DC Output Source/Sink Current	±50		mA
I_CC	DC Supply Current	±400		mA
I_GND	DC Ground Current	±400		mW
T_stg	storage Temperature	-65 to +150
