Product Details

Description

Features:

• Designed for 2.7 to 3.6V V_CC Operation Ideal for Low Power/Low Noise Applications
• Guaranteed Simultaneous Switching Noise Level and Dynamic Threshold Performance
• Guaranteed Skew Specifications
• Guaranteed Incident Wave Switching into 75
• Low Static Supply Current (10A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V

Pinout

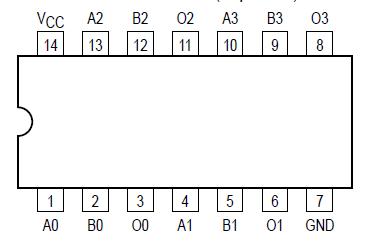

Connection Diagram

Specifications

Symbol	Parameter	Value	Condition	Unit
V_CC	DC Supply Voltage	0.5 to +7.0		V
V_I	DC Input Voltage	0.5 V_I V_CC + 0.5V		V
V_O	DC Output Voltage	0.5 V_O V_CC + 0.5	Output in HIGH or LOW State	V
I_IK	DC Input Diode Current	-20	V_I = 0.5V	mA
I_IK	DC Input Diode Current	+20	V_I = V_CC + 0.5V	mA
I_OK	DC Output Diode Current	-20	V_O = 0.5V	mA
I_OK	DC Output Diode Current	+20	V_I = V_CC + 0.5V	mA
I_O	DC Output Source/Sink Current	±50		mA
I_CC	DC Supply Current	±200		mA
I_GND	DC Ground Current	±200		mA
T_STG	Storage Temperature Range	65 to +150		°C
