MC74LCX543

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.

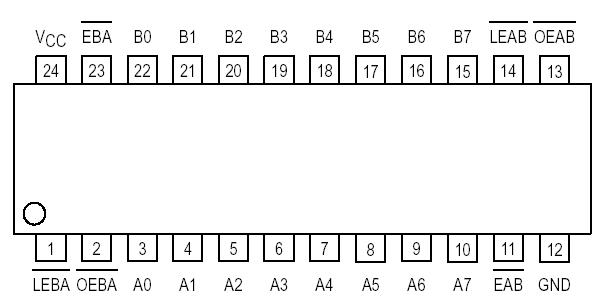

The MC74LCX543 is a high performance, noninverting octal latching transceiver operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX543 inputs to be safely driven from 5V devices. The MC74LCX543 is suitable for memory address driving and all TTL level bus oriented transceiver applications.

For data of MC74LCX543 flow from A to B with the EAB LOW, the AtoB Output Enable (OEAB) must be LOW in order to enable data of MC74LCX543 to the B bus, as indicated in the Function Table. With EAB LOW, a LOW signal on the AtoB Latch Enable (LEAB) input makes the AtoB latches transparent; a subsequent LOWtoHIGH transition of the LEAB signal will latch the A latches, and the outputs no longer change with the A inputs. With EAB and OEAB both LOW, the 3State B output buffers are active and reflect the data present at the output of the A latches. Control of data of MC74LCX543 flow from B to A is symetric to that above, but uses the EBA, LEBA, and OEBA inputs.
