MC74LCX541

Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant - Interface Capability With 5V TTL Logic• Supports Live Insertion and Withdrawal• IOFF Specification Guarantees High Impedance When VCC = 0V• LVTTL Compatible• LVCMOS Compatible• 24mA Balanced...

product image

MC74LCX541 Picture
See larger image
SeekIC No. : 004417083 Detail

MC74LCX541: Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant - Interface Capability With 5V TTL Logic• Supports Live Insertion and Withdrawal• IOFF Specification Guarantee...

MC74LCX541 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LCX541
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant - Interface Capability With 5V TTL Logic
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0V
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10mA) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V


Pinout

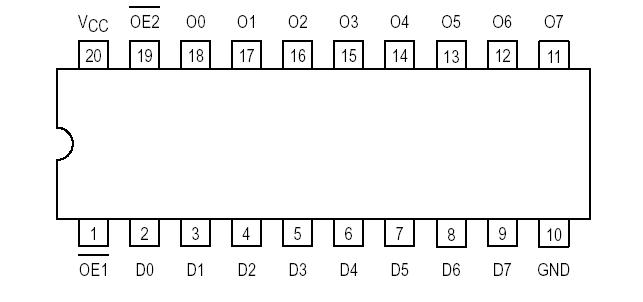

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage 0.5 to +7.0   V
VI DC Input Voltage 0.5 VI +7.0   V
VO DC Output Voltage 0.5 VO +7.0 Output in 3State V
0.5 VO VCC + 0.5 Note 1. V
IIK DC Input Diode Current 50 VI < GND mA
IOK DC Output Diode Current 50 VO < GND mA
+50 VO > VCC mA
IO DC Output Source/Sink Current +50   mA
ICC DC Supply Current Per Supply Pin ±100   mA
IGND DC Ground Current Per Ground Pin ±100   mA
TSTG Storage Temperature Range 65 to +150   °C

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.




Description

The MC74LCX541 is a high performance, noninverting octal buffer operating from a 2.7 to 3.6V supply. This device is similar in function to the MC74LCX244, while providing flow through architecture. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX541 inputs to be safely driven from 5V devices. The MC74LCX541 is suitable for memory address driving and all TTL level bus oriented transceiver applications.

Current drive capability of MC74LCX541 is 24mA at the outputs. The Output Enable (OE1. OE2) inputs, when HIGH, disables the output by placing them in a HIGH Z condition.
