Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant - Interface Capability With 5V TTL Logic• Supports Live Insertion and Withdrawal• IOFF Specification Guarantees High Impedance When VCC = 0V• LVTTL Compatible• LVCMOS Compatible• 24mA Balanced...
MC74LCX374: Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant - Interface Capability With 5V TTL Logic• Supports Live Insertion and Withdrawal• IOFF Specification Guarantee...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Symbol | Parameter | Value | Condition | Unit |
VCC | DC Supply Voltage | 0.5 to +7.0 | V | |
VI | DC Input Voltage | 0.5 VI +7.0 | V | |
VO | DC Output Voltage | 0.5 VO +7.0 | Output in 3State | V |
0.5 VO VCC + 0.5 | Note 1. | V | ||
IIK | DC Input Diode Current | 50 | VI < GND | mA |
IOK | DC Output Diode Current | 50 | VO < GND | mA |
+50 | VO > VCC | mA | ||
IO | DC Output Source/Sink Current | +50 | mA | |
ICC | DC Supply Current Per Supply Pin | ±100 | mA | |
IGND | DC Ground Current Per Ground Pin | ±100 | mA | |
TSTG | Storage Temperature Range | 65 to +150 | °C |
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.

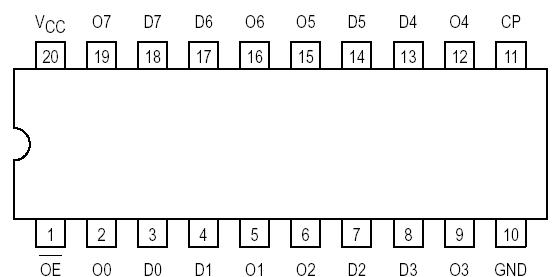

The MC74LCX374 is a high performance, noninverting octal Dtype flipflop operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX374 inputs to be safely driven from 5V devices.
The MC74LCX374 consists of 8 edgetriggered flipflops MC74LCX374 with individual Dtype inputs and 3state true outputs. The buffered clock and buffered Output Enable (OE) are common to all flipflops. The eight flipflops will store the state of individual D inputs that meet the setup and hold time requirements on the LOWtoHIGH Clock (CP) transition. With the OE LOW, the contents of the eight flipflops MC74LCX374 are available at the outputs. When the OE is HIGH, the outputs go to the high impedance state. The OE input level does not affect the operation of the flipflops.
