Product Details

Description

Features:

• Designed for 2.7 to 3.6V V_CC Operation
• 5V Tolerant - Interface Capability With 5V TTL Logic
• Supports Live Insertion and Withdrawal
• I_OFF Specification Guarantees High Impedance When V_CC = 0V
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V

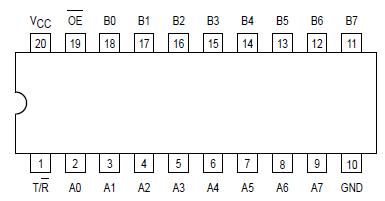

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Condition	Unit
V_CC	DC Supply Voltage	0.5 to +7.0		V
V_I	DC Input Voltage	0.5 V_I +7.0		V
V_O	DC Output Voltage	0.5 V_O +7.0	Output in 3State	V
V_O	DC Output Voltage	0.5 V_O V_CC + 0.5	Note 1.	V
I_IK	DC Input Diode Current	-50	V_I< GND	mA
I_OK	DC Output Diode Current	-50	V_O < GND	mA
I_OK	DC Output Diode Current	+50	V_O > V_CC	mA
I_O	DC Output Source/Sink Current	±50		mA
I_CC	DC Supply Current Per Supply Pin	±100		mA
I_GND	DC Ground Current Per Ground Pin	±100		mA
T_STG	Storage Temperature Range	65 to +150		°C
