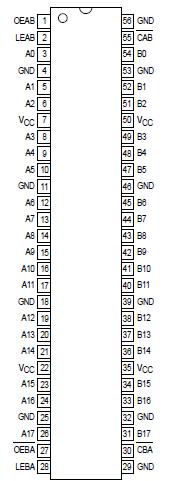

PinoutSpecifications Symbol Symbol Value Condition Unit VCC DC Supply Voltage 0.5 to +7.0 V VI DC Input Voltage 0.5VI+7.0 V VO DC Output Voltage 0.5VO+7.0 Output in 3State V 0.5VOVCC + 0.5 Note 1. V IIK DC Input D...
MC74LCX16500: PinoutSpecifications Symbol Symbol Value Condition Unit VCC DC Supply Voltage 0.5 to +7.0 V VI DC Input Voltage 0.5VI+7.0 V VO DC Output Vo...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Symbol |
Symbol |
Value |
Condition |
Unit |
VCC |
DC Supply Voltage |
0.5 to +7.0 |
V | |
VI |
DC Input Voltage |
0.5VI+7.0 |
V | |
VO
|
DC Output Voltage |
0.5VO+7.0 |
Output in 3State |
V |
0.5VOVCC + 0.5 |
Note 1. |
V | ||
IIK |
DC Input Diode Current |
-50 |
VI < GND |
mA |
IOK
|
DC Output Diode Current |
-50 |
VO < GND |
mA |
+50 |
VO > VCC |
mA | ||
IO |
DC Output Source/Sink Current |
±50 |
mA | |
ICC |
DC Supply Current Per Supply Pin |
±100 |
mA | |
IGND |
DC Ground Current Per Ground Pin |
±100 |
mA | |
TSTG |
Storage Temperature Range |
65 to +150 |
°C |
The MC74LCX16500 is a high performance, noninverting 18bit universal bus transceiver operating from a 2.7 to 3.6V supply. This part is not byte controlled; it is "18bit" controlled. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX16500 inputs to be safely driven from 5V devices. The MC74LCX16500 is suitable for memory address driving and all TTL level bus oriented transceiver applications.
Data of MC74LCX16500 flow in each direction is controlled by Output Enable (OEAB,OEBA), Latch Enable (LEAB, LEBA) and Clock inputs (CAB, CBA). When LEAB is HIGH, the AtoB dataflow is transparent. When LEAB is LOW,and CAB is held at LOW or HIGH, the data A is latched; on the HIGHtoLOW transition of CAB the Adata of MC74LCX16500 is stored in the latch/flipflop. The outputs are active when OEAB is HIGH. When OEAB is LOW the Boutputs are in 3state. Similarly, the LEBA, OEBA and CBA control the BtoA dataflow. Please note that the output of MC74LCX16500 enables are complementary; OEAB is active HIGH, OEBA is active LOW.
• Designed for 2.7 to 3.6V VCC Operation
• 6ns Maximum tpd
• 5V Tolerant - Interface Capability With 5V TTL Logic
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0V
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (20A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; MachineModel >200V
