PinoutSpecifications Symbol Symbol Value Condition Unit VCC DC Supply Voltage 0.5 to +7.0 V VI DC Input Voltage 0.5VI+7.0 V VO DC Output Voltage 0.5VO+7.0 Output in 3State V 0.5VOVCC + 0.5 Note 1. V IIK DC Input ...
MC74LCX16244: PinoutSpecifications Symbol Symbol Value Condition Unit VCC DC Supply Voltage 0.5 to +7.0 V VI DC Input Voltage 0.5VI+7.0 V VO DC Output Vo...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Symbol |
Symbol |
Value |
Condition |
Unit |
VCC |
DC Supply Voltage |
0.5 to +7.0 |
V | |
VI |
DC Input Voltage |
0.5VI+7.0 |
V | |
VO
|
DC Output Voltage |
0.5VO+7.0 |
Output in 3State |
V |
0.5VOVCC + 0.5 |
Note 1. |
V | ||
IIK |
DC Input Diode Current |
-50 |
VI < GND |
mA |
IOK
|
DC Output Diode Current |
-50 |
VO < GND |
mA |
+50 |
VO > VCC |
mA | ||
IO |
DC Output Source/Sink Current |
±50 |
mA | |
ICC |
DC Supply Current Per Supply Pin |
±100 |
mA | |
IGND |
DC Ground Current Per Ground Pin |
±100 |
mA | |
TSTG |
Storage Temperature Range |
65 to +150 |
°C |
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.
The MC74LCX16244 is a high performance, noninverting 16bit buffer operating from a 2.7 to 3.6V supply. The device is nibble controlled. Each nibble has separate Output Enable inputs which can be tied together for full 16bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX16244 inputs to be safely driven from 5V devices.
The MC74LCX16244 is suitable for memory address driving and all TTL level bus oriented transceiver applications.4.5ns maximum propagation delays support high performance applications. Current drive capability is 24mA at the outputs. The Output Enable (OEn) inputs, when HIGH, disable the outputs by placing them in a HIGH Z condition.
• Designed for 2.7 to 3.6V VCC Operation
• 4.5ns Maximum tpd
• 5V Tolerant - Interface Capability With 5V TTL Logic
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0V
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (20A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V;Machine Model >200V

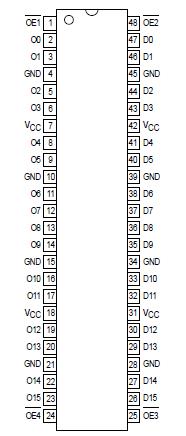

The MC74LCX16244 contains sixteen noninverting buffers with 3state 5Vtolerant outputs. The device is nibble controlled with each nibble functioning identically, but independently. The control pins may be tied together to obtain full 16bit operation. The 3state outputs are controlled by an Output Enable (OEn) input for each nibble. When OEn is LOW, the outputs are on. When OEn is HIGH, the outputs are in the high impedance state.
