Features: • Designed for 2.7 to 3.6V VCC Operation• 4.9ns Maximum tpd• 5V Tolerant - Interface Capability With 5V TTL Logic• Supports Live Insertion and Withdrawal• IOFF Specification Guarantees High Impedance When VCC = 0V• JEDEC Standard JESD36 Compatible̶...
MC74LCX16240A: Features: • Designed for 2.7 to 3.6V VCC Operation• 4.9ns Maximum tpd• 5V Tolerant - Interface Capability With 5V TTL Logic• Supports Live Insertion and Withdrawal• IOF...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Symbol | Parameter | Value | Condition | Unit |
VCC | DC Supply Voltage | 0.5 to +7.0 | V | |
VI | DC Input Voltage | 0.5 VI +7.0 | V | |
VO | DC Output Voltage | 0.5 VO +7.0 | Output in 3State | V |
0.5 VO VCC + 0.5 |
Note 1. |
V | ||
IIK | DC Input Diode Current | 50 | VI < GND | mA |
IOK | DC Output Diode Current | 50 | VO < GND | mA |
+50 | VO > VCC | mA | ||
IO | DC Output Source/Sink Current | ±50 | mA | |
ICC | DC Supply Current Per Supply Pin | ±100 | mA | |
IGND | DC Ground Current Per Ground Pin | ±100 | mA | |
TSTG | Storage Temperature Range | 65 to +150 | °C |

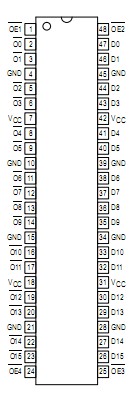

The MC74LCX16240A is a high performance, inverting 16bit buffer operating from a 2.7 to 3.6V supply. The device is nibble controlled. Each nibble has separate Output Enable inputs which can be tied together for full 16bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX16240A inputs to be safely driven from 5V devices. The LCX16240A is suitable for memory address driving and all TTL level bus oriented transceiver applications.
Current drive capability is 24mA at the outputs. The Output Enable (OEn) inputs, when HIGH, disable the outputs by placing them in a HIGH Z condition.
