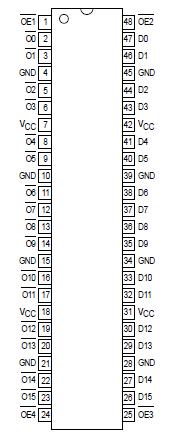

  Connection Diagram


Specifications

Symbol
Symbol
Value
Condition
Unit
VCC
DC Supply Voltage
0.5 to +7.0
V
VI
DC Input Voltage
0.5VI+7.0
V
VO
DC Output Voltage
0.5VO+7.0
Output in 3State
V
0.5VOVCC + 0.51
Output in HIGH or LOW State
V
IIK
DC Input Diode Current
-50
VI < GND
mA
IOK
DC Output Diode Current
-50
VO < GND
mA
+50
VO > VCC
mA
IO
DC Output Source/Sink Current
±50
mA
ICC
DC Supply Current Per Supply Pin
±100
mA
IGND
DC Ground Current Per Ground Pin
±100
mA
TSTG
Storage Temperature Range
65 to +150
°C

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. IO absolute maximum rating must be observed.




Description

The MC74LCX16240 is a high performance, inverting 16bit buffer operating from a 2.7 to 3.6V supply. The device is nibble controlled. Each nibble has separate Output Enable inputs which can be tied together for full 16bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX16240 inputs to be safely driven from 5V devices. The LCX16240 is suitable for memory address driving and all TTL level bus
oriented transceiver applications.

Current drive capability is 24mA at the outputs. The Output Enable (OEn) inputs, when HIGH, disable the outputs by placing them in a HIGH Z condition.

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant - Interface Capability With 5V TTL Logic
• Supports Live Insertion and Withdrawal
• IOFF Specification Guarantees High Impedance When VCC = 0V
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA

• ESD Performance: Human Body Model >2000V; Machine Model >200V The MC74LCX16240 contains sixteen inverting buffers with 3state 5Vtolerant outputs. The device is nibble controlled with each nibble functioning identically, but independently. The control pins may be tied together to obtain full 16bit operation. The 3state outputs are controlled by an Output Enable (OEn) input for each nibble. When OEn is LOW, the outputs are on. When OEn is HIGH, the outputs are in the high impedance state.
