MC74LCX07

Features: • Designed for 2.3 to 3.6 V VCC Operation• 5.0 V Tolerant Inputs/Outputs• LVTTL Compatible• LVCMOS Compatible• 24 mA Output Sink Capability• Near Zero Static Supply Current (10 A) Substantially Reduces System Power Requirements• Latchup Performa...

product image

MC74LCX07 Picture
See larger image
SeekIC No. : 004417049 Detail

MC74LCX07: Features: • Designed for 2.3 to 3.6 V VCC Operation• 5.0 V Tolerant Inputs/Outputs• LVTTL Compatible• LVCMOS Compatible• 24 mA Output Sink Capability• Near Zero S...

MC74LCX07 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LCX07
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed for 2.3 to 3.6 V VCC Operation
• 5.0 V Tolerant Inputs/Outputs
• LVTTL Compatible
• LVCMOS Compatible
• 24 mA Output Sink Capability
• Near Zero Static Supply Current (10 A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500 mA
• Wired−OR, Wired−AND
• Output Level Can Be Set Externally Without Affecting Speed of Device
• ESD Performance: Human Body Model >1500 V;Machine Model >200 V
• Pb−Free Packages are Available*




Pinout

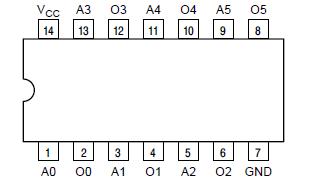

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage −0.5 to +7.0   V
VI DC Input Voltage −0.5  VI +7.0   V
VO DC Output Voltage −0.5  VO +7.0 Output in HIGH or LOW State (Note 1) V
IIK DC Input Diode Current −50 VI < GND mA
IOK DC Output Diode Current −50 VO < GND mA
+50 VO > VCC mA
IO DC Output/Sink Current +50   mA
ICC DC Supply Current Per Supply Pin 100   mA
IGND DC Ground Current Per Ground Pin 100   mA
TSTG Storage Temperature Range −65 to +150   °C
