Product Details

Description

Features:

• Designed for 2.3 V to 3.6 V VCC Operation
• 5.0 V Tolerant Inputs/Outputs
• LVTTL Compatible
• LVCMOS Compatible
• 24 mA Output Sink Capability
• Near Zero Static Supply Current (10 A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500 mA
• Wired−OR, Wired−AND
• Output Level Can Be Set Externally Without Affecting Speed of Device
• Functionally Compatible with LCX05
• ESD Performance: Human Body Model >1500 V;Machine Model >200 V
• Pb−Free Packages are Available*

Pinout

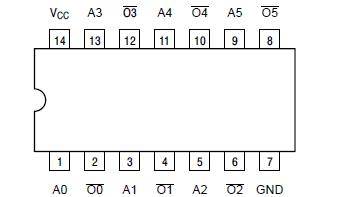

Connection Diagram

Specifications

Symbol	Parameter	Value	Condition	Unit
V_CC	DC Supply Voltage	?0.5 to +7.0		V
V_I	DC Input Voltage	?0.5 V_I +7.0		V
V_O	DC Output Voltage	?0.5 V_O +7.0	Output in HIGH or LOW State (Note 1)	V
I_IK	DC Input Diode Current	?50	V_I< GND	mA
I_OK	DC Output Diode Current	?50	V_O < GND	mA
I_OK	DC Output Diode Current	+50	V_O > V_CC	mA
I_O	DC Output/Sink Current	+50		mA
I_CC	DC Supply Current Per Supply Pin	100		mA
I_GND	DC Ground Current Per Ground Pin	100		mA
T_STG	Storage Temperature Range	?65 to +150		°C
