MC74LCX00

Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic• LVTTL Compatible• LVCMOS Compatible• 24mA Balanced Output Sink and Source Capability• Near Zero Static Supply Current (10mA) Substantially Reduces Sy...

product image

MC74LCX00 Picture
See larger image
SeekIC No. : 004417043 Detail

MC74LCX00: Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic• LVTTL Compatible• LVCMOS Compatible• 24mA Balanced Outp...

MC74LCX00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LCX00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System
  Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V

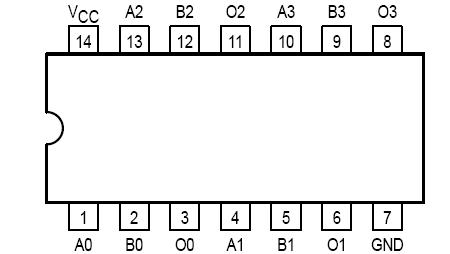

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Condition Unit
VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0   V
Vi DC Input Voltage (Referenced to GND) 0.5 3 VI 3 +7.0   V
Vo DC Output Voltage (Referenced to GND) 0.5 3 VO 3 VCC + 0.5 Note 1. V
Iik DC Input Current, per Pin -50 VI < GND mA
Iok DC Output Sink/Source Current, per Pin -50 VO < GND mA
+50 VO > VCC
lo DC Output Source/Sink Current ±50
ICC DC VCC or GND Current per Output Pin ±100   mA
IGND DC Ground Current Per Ground Pin ±100
Tstg Storage Temperature 65 to +150   °C
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or
conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is
not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.


Description

The MC74LCX00 is a high performance, quad 2input NAND gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX00 inputs to be safely driven from 5V devices.

Current drive capability is 24mA at the outputs.
