MC74HCT374AN

Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Supply Voltage - Max : 5.5 V
Logic Family : HCT
Logic Type : CMOS
Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
Mounting Style : Through Hole
Package / Case : PDIP-20
Packaging : Tube
High Level Output Current : - 6 mA
Low Level Output Current : 6 mA
Propagation Delay Time : 31 ns


Features:

• Output Drive Capability: 15 LSTTL Loads
• TTL/NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 276 FETs or 69 Equivalent Gates
• Improvements over HCT374
- Improved Propagation Delays
- 50% Lower Quiescent Power
- Improved Input Noise and Latchup Immunity

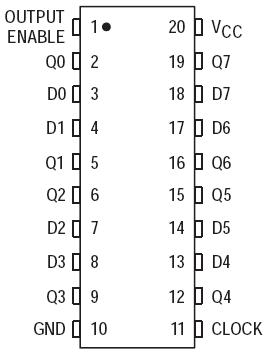

Pinout

Specifications

Symbol	Parameter	Value	Unit
vcc	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
VIN	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
VOUT	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
LIN	DC Input Current, per Pin	±20	mA
IOUT	DC Onput Current, per Pin	±35	mA
ICC	DC Supply Current Per Supply Pin	±75	mA
PD	Power dissipation in still air piastic DIP SOIC package	750 500	mW
TSTG	Storage Temperature	65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260	°C

Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/
C from 65
to 125
C
SOIC Package: 7 mW/
C from 65
to 125
C
TSSOP Package: 6.1 mW/
C from 65
to 125
C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HCT374A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs. The HCT374A is identical in pinout to the LS374.

Data meeting the setup and hold time is clocked to the outputs with the rising edge of Clock. The Output Enable does not affect the state of the flipflops, but when Output Enable of MC74HCT374AN is high, the outputs are forced to the highimpedance state. Thus, data may be stored even when the outputs are not enabled.

The HCT374A is identical in function to the HCT574A, which has the input pins on the opposite side of the package from the output pins. This device is similar in function to the HCT534A, which has inverting outputs.
