MC74HCT273A

Features: • Output Drive Capability: 10 LSTTL Loads• TTL/NMOS Compatible Input Levels• Outputs Directly Interface to CMOS, NMOS and TTL• Operating Voltage Range: 4.5 to 5.5 V• Low Input Current: 1.0 A• In Compliance with the Requirements Defined by JEDEC Standar...

product image

MC74HCT273A Picture
See larger image
SeekIC No. : 004417027 Detail

MC74HCT273A: Features: • Output Drive Capability: 10 LSTTL Loads• TTL/NMOS Compatible Input Levels• Outputs Directly Interface to CMOS, NMOS and TTL• Operating Voltage Range: 4.5 to 5.5 V...

MC74HCT273A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74HCT273A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output Drive Capability: 10 LSTTL Loads
• TTL/NMOS Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 A
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 284 FETs or 71 Equivalent Gates


Pinout

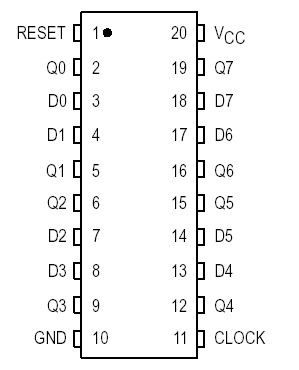

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCC DC Supply Voltage (Referenced to GND)
-0.5 to +7.0
V
VIN DC Input Voltage (Referenced to GND)
-1.5 to VCC +1.5
V
VOUT DC Output Voltage (Referenced to GND)
-0.5 to VCC +0.5
V
IIN DC Input Current, per Pin
±20
mA
IOUT DC Output Current, per Pin
±35
mA
ICC DC Supply Current, VCC and GND Pins
±50
mA
PD Power Dissipation in Still Air, Plastic DIP+ SOIC Package+
750
500
mW
Tstg Storage Temperature
-65 to +150
°C
TL Lead Temperature, 1 mm from Case for 10 Seconds (SOI Cor Plastic DIP )
260
°C

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/ from 65° to 125 SOIC Package: 7 mW/ from 65° to 125 For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HCT273A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs. The HCT273A is identical in pinout to the LS273.

MC74HCT273A consists of eight D flipflops with common Clock and Reset inputs. Each flipflop is loaded with a lowtohigh transition of the Clock input. Reset is asynchronous and active low.
