MC74HCT240A

Features:

• Output Drive Capability: 15 LSTTL Loads
• TTL NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1 A
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 110 FETs or 27.5 Equivalent Gates

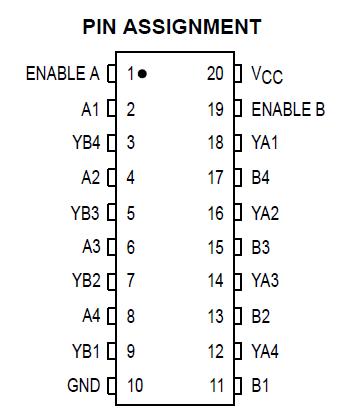

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	-0.5 to Vcc+0.5	V
Vout	DC Output Voltage (Referenced to GND	-0.5 to Vcc+0.5	V
Iin	DC Input Current,per Pin	±20	mA
IOUT	DC Output Current,per Pin	±35	mA
ICC	DC Supply Current,Vcc and GND Pins	±75	mA
PD	Power Dissipation in Still Air Plastic DIP+ SOIC Package+ TSSOP or SSOP Package+	750 500 450	mW
Tstg	Storage Temperature	-60 to +150
TL	Lead Temperature.1 mm from Case for 10 Seconds(Plastic DIP,SOIC,TSSOP or SSOP Package)	260

Description

The MC74HCT240A is identical in pinout to the LS240. This device may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs. The HCT240A is an octal inverting buffer line driver line receiver designed to be used with 3state memory address drivers, clock drivers, and other busoriented systems. The device has inverting outputs and two activelow output enables. The HCT240A is the inverting version of the HCT244. See also HCT241.
