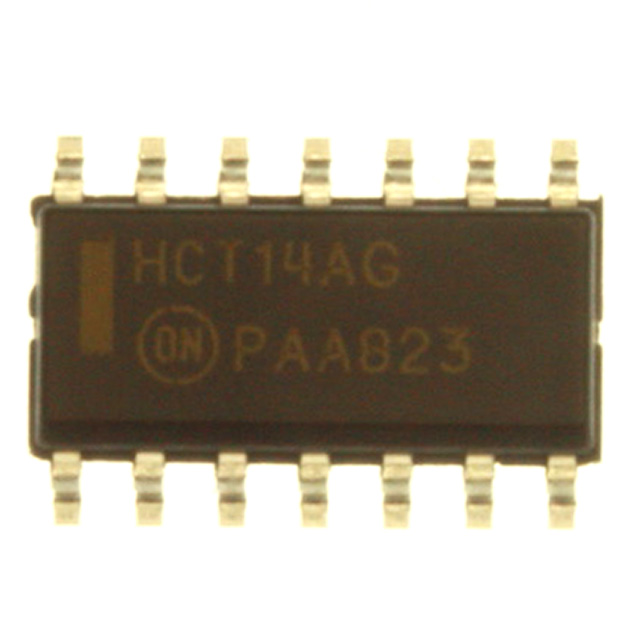

MC74HCT14ADTR2

Propagation Delay Time :
Minimum Operating Temperature :
Operating Temperature Range :
Maximum Operating Temperature : + 125 C
Packaging : Reel
Number of Circuits : 6
Logic Type : CMOS
Supply Voltage - Max : 5.5 V
Logic Family : 74HCT
Package / Case : TSSOP-14
High Level Output Current : - 4 mA
Low Level Output Current : 4 mA
Supply Voltage - Min : 4.5 V


Parameters:

Technical/Catalog Information	MC74HCT14ADTR2
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-TSSOP
Logic Type	Inverter with Schmitt Trigger
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	4mA, 4mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HCT14ADTR2 MC74HCT14ADTR2
