MC74HC76

Features:

• Similar in Function to the LS76 Except When Set and Reset Are
  Low Simultaneously
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2 to 6V
• Low Input Current: 1mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 100 FETs or 25 Equivalent Gates

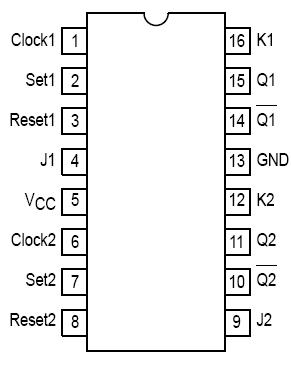

Pinout




Specifications

Symbol	Parameter	Value	Unit
vcc	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
VIN	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
VOUT	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
LIN	DC Input Current, per Pin	±20	mA
IOUT	DC Onput Current, per Pin	±25	mA
ICC	DC Supply Current Per Supply Pin	±50	mA
PD	Power dissipation in still air piastic DIP SOIC package	750 500 450	mW
TSTG	Storage Temperature	65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260	°C

* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/
C from 65
to 125
C
Ceramic DIP: 10 mW/
C from 100
to 125
C
SOIC Package: 7 mW/
C from 65
to 125
C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HC76 is identical in pinout to the LS76. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Each flipflop MC74HC76 is negativeedge clocked and has activelow asynchronous Set and Reset inputs.

The HC76 is identical in function to the HC112, but has a different pinout.
