Product Details

Description



Features:

• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 134 FETs or 33.5 Equivalent Gates
• Pb−Free Packages are Available*

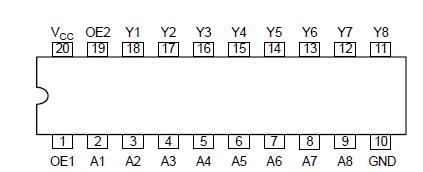

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage
-0.5 to -7.0
V
VI
 DC Input Voltage
-0.5 VI +0.5
V
VO
 DC Output Voltage (Note 1)
-0.5 VO +0.5
V
IIK
 DC Input Diode Current
±20
mA
IOK
 DC Output Diode Current
±35
mA
IO
 DC Output Sink Current
±35
mA
ICC
 DC Supply Current per Supply Pin
±75
mA
IGND
 DC Ground Current per Ground Pin
±75
mA
TSTG
 Storage Temperature Range
-65 to +150
ºC
TL
 Lead Temperature, 1 mm from Case for 10 Seconds
260
ºC
TJ
 Junction Temperature under Bias
+150
ºC
JA
 Thermal Resistance PDIP
SOIC
TSSOP
67
96
128
ºC/W
PD
 Power Dissipation in Still Air at 85ºC PDIP
SOIC
TSSOP
750
500
450
mW
MSL
 Moisture Sensitivity
Level 1
FR
 Flammability Rating Oxygen Index: 30% − 35%
UL 94 V−0 @ 0.125 in
VESD
 ESD Withstand Voltage Human Body Model (Note 2)
Machine Model (Note 3)
Charged Device Model (Note 4)
>4000
>300
>1000
V
ILatchup
 Latchup Performance Above VCC and Below GND at 85ºC (Note 5)
±300
mA

1. IO absolute maximum rating must be observed.
2. Tested to EIA/JESD22−A114−A.
3. Tested to EIA/JESD22−A115−A.
4. Tested to JESD22−C101−A.
5. Tested to EIA/JESD78.
6. For high frequency or heavy load considerations, see the ON Semiconductor High−Speed CMOS Data Boo (DL129/D).


Description

The MC74HC541A is identical in pinout to the LS541. The device inputs are compatible with Standard CMOS outputs. External pull−up resistors make them compatible with LSTTL outputs.

The HC541A is an octal noninverting buffer/line driver/line receiver designed to be used with 3−state memory address drivers, clock drivers, and other bus−oriented systems. This device features inputs and outputs on opposite sides of the package and two ANDed active−low output enables.

The HC541A is similar in function to the HC540A, which has inverting outputs.
