MC74HC4316AN

Supply Current :
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Supply Voltage - Max : 6 V
Supply Voltage - Min : 2 V
Number of Channels : 4 Channel
Packaging : Tube
Package / Case : PDIP-16
Maximum Power Dissipation : 750 mW
On Resistance (Max) : 160 Ohms
Propagation Delay Time : 5 ns
On Time (Max) : 140 ns
Off Time (Max) : 130 ns


Features:

• LogicLevel Translator for On/Off Control and Enable Inputs
• Fast Switching and Propagation Speeds
• High ON/OFF Output Voltage Ratio
• Diode Protection on All Inputs/Outputs
• Analog PowerSupply Voltage Range (VCC VEE) = 2.0 to 12.0 Volts
• Digital (Control) PowerSupply Voltage Range (VCC GND) = 2.0
  to 6.0 Volts, Independent of VEE
• Improved Linearity of ON Resistance
• Chip Complexity: 66 FETs or 16.5 Equivalent Gates

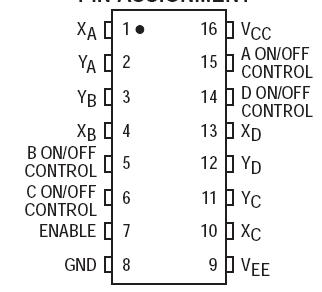

Pinout




Specifications

Symbol	Parameter	Value	Unit
vcc	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
VIN	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
VOUT	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
LIN	DC Input Current, per Pin	±20	mA
IOUT	DC Onput Current, per Pin	±35	mA
ICC	DC Supply Current Per Supply Pin	±75	mA
PD	Power dissipation in still air piastic DIP SOIC package	750 500	mW
TSTG	Storage Temperature	65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260	°C

* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/
C from 65
to 125
C
Ceramic DIP: 10 mW/
C from 100
to 125
C
SOIC Package: 7 mW/
C from 65
to 125
C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HC4316A utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFFchannel leakage current. This bilateral switch/multiplexer/ demultiplexer controls analog and digital voltages that may vary across the full analog powersupply range (from VCC to VEE).

The HC4316A is similar in function to the metalgate CMOS MC14016 and MC14066, and to the HighSpeed CMOS HC4066A. Each device has four independent switches. The device control and Enable inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. MC74HC4316AN has been designed so that the ON resistances (RON) are much more linear over input voltage than RON of metalgate CMOS analog switches. Logiclevel translators are provided so that the On/Off Control and Enable logiclevel voltages need only be VCC and GND, while the switch is passing signals of MC74HC4316AN ranging between VCC and VEE. When the Enable pin (activelow) is high, all four analog switches are turned off.

Parameters:

Technical/Catalog Information	MC74HC4316AN
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Type	Multiplexer/Demultiplexer
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	±2 V ~ 6 V
Circuit	4 x 1:1
On-State Resistance	130 Ohm
Mounting Type	Through Hole
Package / Case	16-DIP (300 mil)
Packaging	Tube
Current - Supply	40A
Operating Temperature	-55°C ~ 125°C
Function	Multiplexer/Demultiplexer
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC4316AN MC74HC4316AN
