MC74HC4066AN

Supply Current :
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Supply Voltage - Min : 2 V
Number of Channels : 4 Channel
Packaging : Tube
Propagation Delay Time : 40 ns
Supply Voltage - Max : 12 V
On Resistance (Max) : 120 Ohms
On Time (Max) : 80 ns
Off Time (Max) : 80 ns
Maximum Power Dissipation : 750 mW
Package / Case : PDIP-14


Features:

• Fast Switching and Propagation Speeds
• High ON/OFF Output Voltage Ratio
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Wide PowerSupply Voltage Range (VCC GND) = 2.0 to 12.0 Volts
• Analog Input Voltage Range (VCC GND) = 2.0 to 12.0 Volts
• Improved Linearity and Lower ON Resistance over Input Voltage
   than the MC14016 or MC14066
• Low Noise
• Chip Complexity: 44 FETs or 11 Equivalent Ga


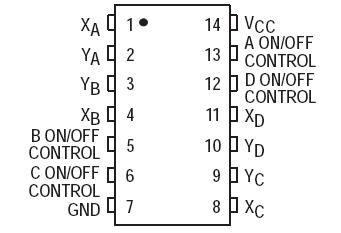

Pinout




Specifications



Symbol	Parameter	Value	Unit
vcc	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
VIN	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
VOUT	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
LIN	DC Input Current, per Pin	±20	mA
IOUT	DC Onput Current, per Pin	±35	mA
ICC	DC Supply Current Per Supply Pin	±75	mA
PD	Power dissipation in still air piastic DIP SOIC package	750 500 450	mW
TSTG	Storage Temperature	65 to +150	°C
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260	°C

* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/
C from 65
to 125
C
Ceramic DIP: 10 mW/
C from 100
to 125
C
SOIC Package: 7 mW/
C from 65
to 125
C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HC4066A utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFFchannel leakage current. This bilateral switch/ multiplexer/demultiplexer controls analog and digital voltages that may vary across the full powersupply range (from VCC to GND). The HC4066A is identical in pinout to the metalgate CMOS MC14016 and MC14066. Each device has four independent switches. The device has been designed so that the ON resistances (RON) are much more linear over input voltage than RON of metalgate CMOS analog switches.

The ON/OFF control inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. For analog switches with voltagelevel translators, see the HC4316A.

Parameters:

Technical/Catalog Information	MC74HC4066AN
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Type	Multiplexer/Demultiplexer
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	±2 V ~ 12 V
Circuit	4 x 1:1
On-State Resistance	100 Ohm
Mounting Type	Through Hole
Package / Case	14-DIP (300 mil)
Packaging	Tube
Current - Supply	40A
Operating Temperature	-55°C ~ 125°C
Function	Multiplexer/Demultiplexer
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC4066AN MC74HC4066AN MC74HC4066ANOS ND MC74HC4066ANOSND MC74HC4066ANOS
