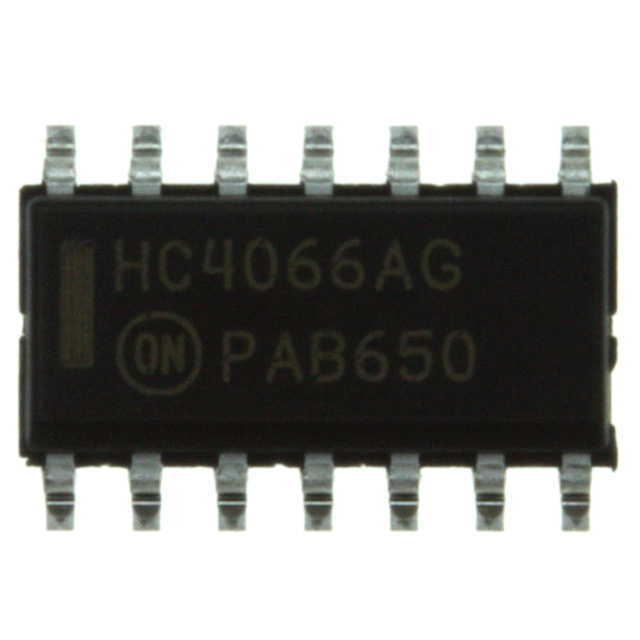

MC74HC4066ADR2

Supply Current :
Maximum Power Dissipation : 500 mW
Packaging : Reel
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Supply Voltage - Min : 2 V
Number of Channels : 4 Channel
Propagation Delay Time : 40 ns
Supply Voltage - Max : 12 V
On Resistance (Max) : 120 Ohms
On Time (Max) : 80 ns
Off Time (Max) : 80 ns
Package / Case : SOIC-14


Parameters:

Technical/Catalog Information	MC74HC4066ADR2
Vendor	ON Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	Multiplexer/Demultiplexer
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	±2 V ~ 12 V
Circuit	4 x 1:1
On-State Resistance	100 Ohm
Mounting Type	Surface Mount
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Packaging	Cut Tape (CT)
Current - Supply	40A
Operating Temperature	-55°C ~ 125°C
Function	Multiplexer/Demultiplexer
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC4066ADR2 MC74HC4066ADR2 MC74HC4066ADROSCT ND MC74HC4066ADROSCTND MC74HC4066ADROSCT
