Features: Output Drive Capability: 10 LSTTL Loads Low Power Consumption Characteristic of CMOS Devices Operating Speeds Similar to LSTTL Wide Operating Voltage Range: 3.0 to 6.0 V Low Input Current: 1.0µA Maximum (except SIGINand COMPIN) In Compliance with the Requirements Defined by JEDEC ...
MC74HC4046A: Features: Output Drive Capability: 10 LSTTL Loads Low Power Consumption Characteristic of CMOS Devices Operating Speeds Similar to LSTTL Wide Operating Voltage Range: 3.0 to 6.0 V Low Input Current...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Symbol | Parameter | Value | Unit |
VCC | DC Supply Voltage (Referenced to GND) | 0.5 to+7.0 | V |
Vin | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 1.5 | V |
Vout | DC Input Current, per Pin | 0.5 to VCC+0.5 | V |
Iin | DC Output Current, per Pin | 20 | mA |
IOUT | DC Supply Current, VCCand GND Pins | ±25 | mA |
ICC | DC Output Current, per Pin | ±50 | mA |
PD | DC Supply Current, VCCand GND Pins | 750 500 | mA |
Tstg | Packages TSSOP Package† SOIC Package† |
65 to + 150 | mW |
TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 |

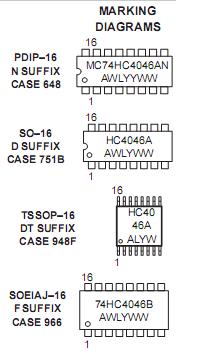

The MC74HC4046A is similar in function to the MC14046 Metal gate CMOS device. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
The HC4046A phaselocked loop contains three phase comparators of MC74HC4046A, a voltagecontrolled oscillator (VCO) and unity gainopamp DEMOUT. The comparators have two common signal inputs, COMPIN, and SIGIN. Input SIGIN and COMPIN can be used directly coupled to large voltage signals, or indirectly coupled (with a series capacitor to small voltage signals). The selfbias circuit adjusts small voltage signals in the linear region of the amplifier. Phase comparator 1 (an exclusive OR gate) provides a digital error signal PC1OUT and maintains 90 degrees phase shift at the center frequency between SIGIN and COMPIN signals (both at 50% duty cycle). Phase comparator 2 (with leadingedge sensing logic) provides digital error signals PC2OUT and PCPOUT and maintains a 0 degree phase shift between SIGIN and COMPIN signals (duty cycle is immaterial). Thelinear VCO produces an output signal VCOOUT whose frequency is determined by the voltage of input VCOIN signal and the capacitor and resistors connected to pins C1A, C1B, R1 and R2. The unity gainopamp output DEMOUT with an external resistor is used where the VCOIN signal is needed but no loading can be tolerated. The inhibit input, when high, disables the VCO and all opamps to minimize standby power consumption.
Applications of MC74HC4046A include FM and FSK modulation and demodulation, frequency synthesis and multiplication, frequency discrimination, tone decoding, data synchronization and conditioning, voltagetofrequency conversion and motor speed control.
