MC74HC280

Features: • Output Drive Capability: 10 LSTTL Loads• Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 2 to 6 V• Low Input Current: 1 mA• High Noise Immunity Characteristic of CMOS Devices• In Compliance with the Requirements Defined by...

product image

MC74HC280 Picture
See larger image
SeekIC No. : 004416940 Detail

MC74HC280: Features: • Output Drive Capability: 10 LSTTL Loads• Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 2 to 6 V• Low Input Current: 1 mA• High...

MC74HC280 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74HC280
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 226 FETs or 56.5 Equivalent Gates


Pinout

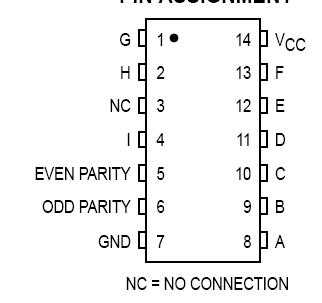

Connection Diagram


Specifications

Symbol Parameter Value Unit
vcc DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
VOUT DC Output Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
LIN DC Input Current, per Pin ±20 mA
IOUT DC Onput Current, per Pin ±25 mA
ICC DC Supply Current Per Supply Pin ±50 mA
PD Power dissipation in still air piastic DIP
SOIC package
750
500		 mW
TSTG Storage Temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
?Derating - Plastic DIP: 10 mW/ from 65to 125
Ceramic DIP: 10 mW/ from 100 to 125
SOIC Package: 7 mW/ from 65 to 125
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC74HC280 is identical in pinout to the LS280. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

This circuit MC74HC280 consists of 9 databit inputs (A through I) and 2 outputs (Even Parity and Odd Parity) to allow both odd and even parity applications. Words greater than 9bits can be accommodated by cascading other HC280 devices.

MC74HC280 can be used in systems utilizing the LS180 parity generator/ checker. Although the HC280 does not have expander inputs, the corresponding function is provided by an input at pin 4 and the absence of any connection at pin 3. MC74HC280 permits the HC280 to be substituted for the LS180 to produce a similar function, even if the HC280s are mixed with existing LS180s. NOTE: Pullup resistors must be used on the LS180 outputs to interface with the HC280.
