MC74HC273ADWR2G, US $ .23-.43 , ON Semiconductor, MC74HC273ADWR2G DataSheet download, circuit diagram from SeekIC.com

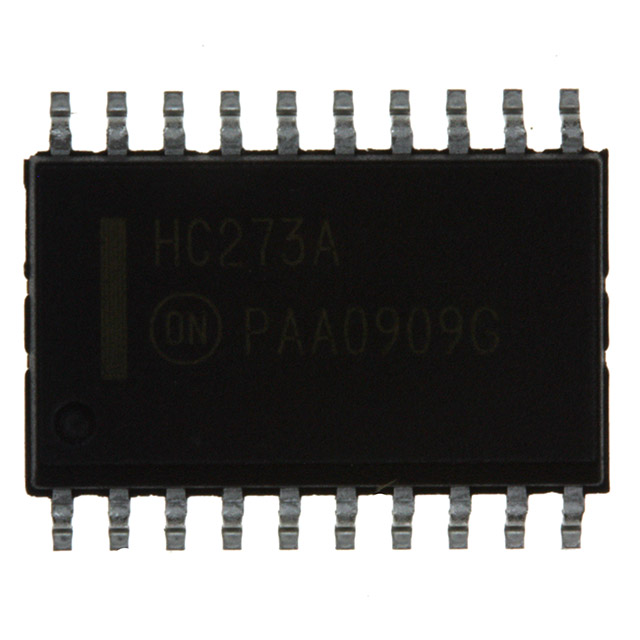

See larger image

SeekIC No. : 00428238 Detail

MC74HC273ADWR2G: Flip Flops 2-6V CMOS Octal D-Type

MC74HC273ADWR2G Data Sheet

US $ .23~.43 / Piece | Get Latest Price

Part Number:: MC74HC273ADWR2G
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500
500~1000

Unit Price
$.43
$.36
$.32
$.27
$.23

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC74 evaluate
Features: • Tested Operating Temperature Range: 40 to +125 • Simple Serial Port Interf...
MC740-430E evaluate
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
MC7410TVU400LE evaluate
US $92.17 - 92.17 / Piece

Microprocessors (MPU) REV 1.4,-40C PB FREE SPH

Product Details

Quick Details

Number of Circuits :	1	Logic Family :	HC
Logic Type :	CMOS	Polarity :	Non-Inverting
Input Type :	Single-Ended	Output Type :	Single-Ended
Propagation Delay Time :	145 ns	High Level Output Current :	- 7.8 mA
Low Level Output Current :	7.8 mA	Supply Voltage - Max :	6 V
Maximum Operating Temperature :	+ 125 C	Mounting Style :	SMD/SMT
Package / Case :	SOIC-20 Wide	Packaging :	Reel

Description

Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Packaging : Reel
Logic Type : CMOS
Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
Package / Case : SOIC-20 Wide
High Level Output Current : - 7.8 mA
Low Level Output Current : 7.8 mA
Supply Voltage - Max : 6 V
Logic Family : HC
Propagation Delay Time : 145 ns

Parameters:

Technical/Catalog Information	MC74HC273ADWR2G
Vendor	ON Semiconductor (VA)
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-SOIC (7.5mm Width)
Function	Reset
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	7.8mA, 7.8mA
Output Type	Non-Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Cut Tape (CT)
Operating Temperature	-55°C ~ 125°C
Delay Time - Propagation	25ns
Frequency - Clock	35MHz
Voltage - Supply	2 V ~ 6 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC74HC273ADWR2G MC74HC273ADWR2G MC74HC273ADWR2GOSCT ND MC74HC273ADWR2GOSCTND MC74HC273ADWR2GOSCT
