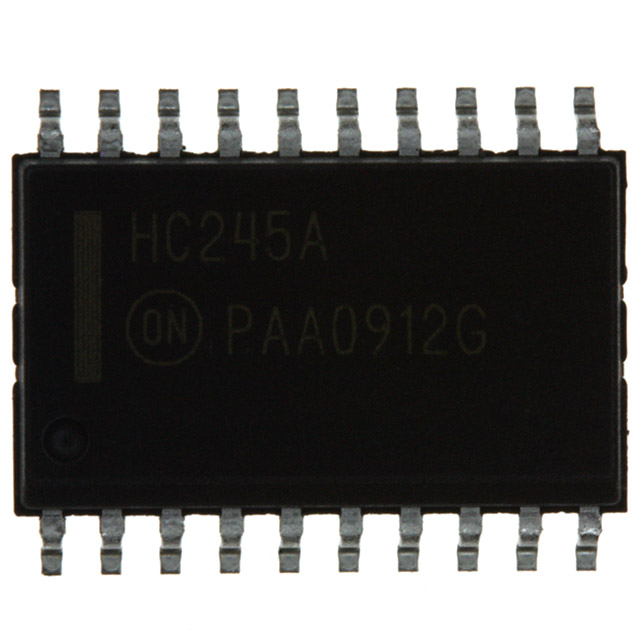

MC74HC245ADWR2

Number of Channels per Chip : 8
Output Type : 3-State
Logic Type : CMOS
Supply Voltage - Min : 2 V
Maximum Operating Temperature : + 125 C
Packaging : Reel
Input Level : CMOS
Output Level : CMOS
Supply Voltage - Max : 6 V
Logic Family : HC
High Level Output Current : - 7.8 mA
Low Level Output Current : 7.8 mA
Package / Case : SOIC-20 Wide
Propagation Delay Time : 75 ns


Pinout




Specifications

SymbolL	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Vout	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Iin	DC Input Current, per Pin	± 20	mA
Iout	DC Output Current, per Pin	± 35	mA
ICC	DC Supply Current, VCC and GND Pins	± 75	mA
PD	Power Dissipation in Still Air, Plastic or Ceramic DIP†                                                           SOIC Package†	750	mW
Tstg	Storage Temperature	65 to + 150
TL	Lead Temperature, 1 mm from Case for 10 Seconds                                    (Plastic DIP or SOIC Package)	260
