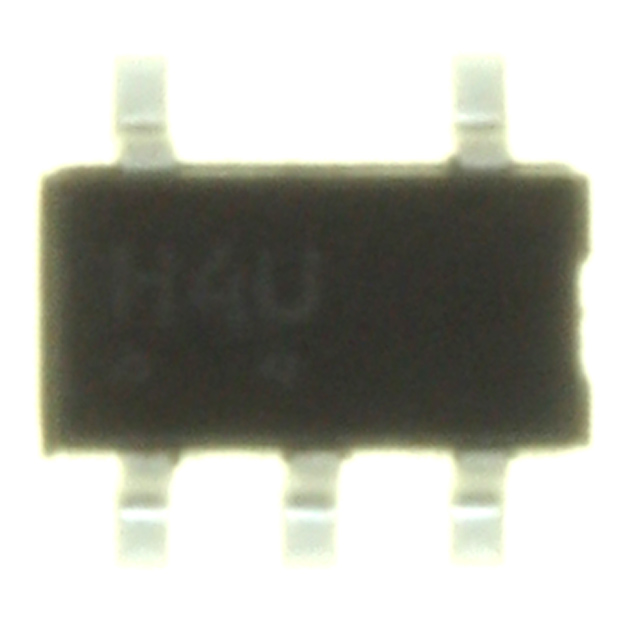

MC74HC1GU04DTT1

Minimum Operating Temperature :
Operating Temperature Range :
Maximum Operating Temperature : + 125 C
Packaging : Reel
Logic Type : CMOS
Logic Family : 74HC
Number of Circuits : 1
High Level Output Current : - 2.6 mA
Low Level Output Current : 2.6 mA
Propagation Delay Time : 100 ns, 20 ns, 17 ns
Supply Voltage - Max : 6 V
Supply Voltage - Min : 2 V
Package / Case : SOT-23-5 Thin


Parameters:

Technical/Catalog Information	MC74HC1GU04DTT1
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	SOT-23-5
Logic Type	Inverter
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	2.6mA, 2.6mA
Supply Voltage	2 V ~ 6 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	2 V ~ 6 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC1GU04DTT1 MC74HC1GU04DTT1 MC74HC1GU04DTT1OS ND MC74HC1GU04DTT1OSND MC74HC1GU04DTT1OS
