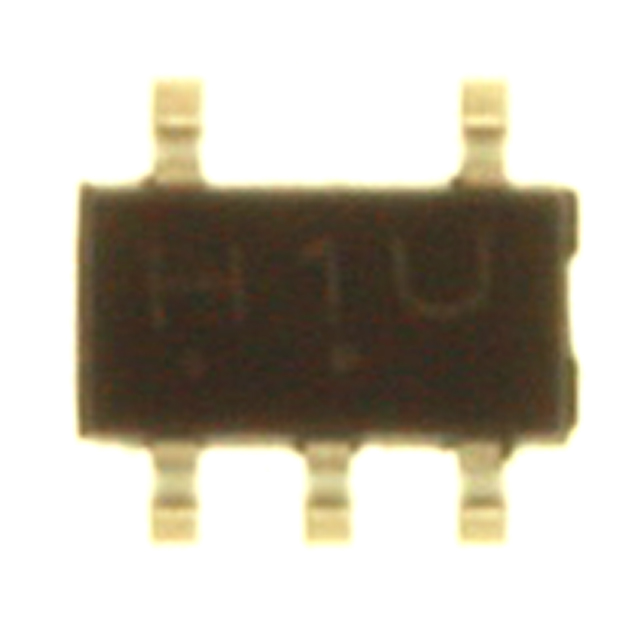

See larger image

SeekIC No. : 003544891 Detail

MC74HC1G02DFT1G: IC GATE NOR SGL 2INP SOT-353

MC74HC1G02DFT1G Data Sheet

Get Latest Price

Part Number:: MC74HC1G02DFT1G
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC74 evaluate
Features: • Tested Operating Temperature Range: 40 to +125 • Simple Serial Port Interf...
MC740-430E evaluate
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
MC7410TVU400LE evaluate
US $92.17 - 92.17 / Piece

Microprocessors (MPU) REV 1.4,-40C PB FREE SPH

Product Details

Quick Details

Series:	74HC	Manufacturer:	ON Semiconductor
Logic Type:	NOR Gate	Number of Circuits:	1
Number of Inputs:	2	Features:	-
High Level Output Current :	- 32 mA	Voltage - Supply:	2 V ~ 6 V
Current - Quiescent (Max):	1µA	Current - Output High, Low:	2.6mA, 2.6mA
Logic Level - Low:	0.5 V ~ 1.8 V	Logic Level - High:	1.5 V ~ 4.2 V
Max Propagation Delay @ V, Max CL:	17ns @ 6V, 50pF	Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount	Supplier Device Package:	SC-70
Package / Case:	6-TSSOP (5 Lead), SC-88A, SOT-353

Description

Number of Circuits: 1
Mounting Type: Surface Mount
Package / Case: 6-TSSOP (5 Lead), SC-88A, SOT-353
Logic Type: NOR Gate
Number of Inputs: 2
Features: -
Current - Quiescent (Max): 1µA
Series: 74HC
Voltage - Supply: 2 V ~ 6 V
Logic Level - High: 1.5 V ~ 4.2 V
Operating Temperature: -55°C ~ 125°C
Logic Level - Low: 0.5 V ~ 1.8 V
Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
Packaging: Tape & Reel (TR)
Current - Output High, Low: 2.6mA, 2.6mA
Manufacturer: ON Semiconductor
Supplier Device Package: SC-70

Parameters:

Technical/Catalog Information	MC74HC1G02DFT1G
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	SC-70-5, SC-88A, SOT-323-5, SOT-353, 5-TSSOP
Logic Type	NOR Gate
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	2.6mA, 2.6mA
Supply Voltage	2 V ~ 6 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	2 V ~ 6 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC74HC1G02DFT1G MC74HC1G02DFT1G
