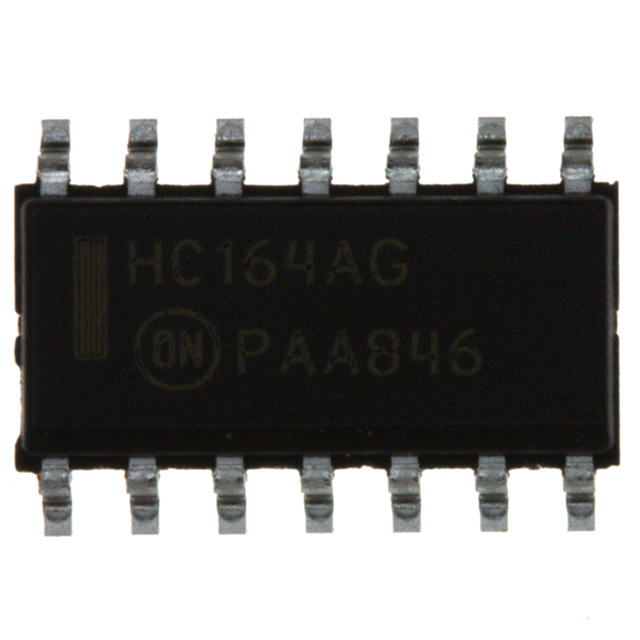

MC74HC164ADR2

Counter Type :
Output Type :
Packaging : Reel
Counting Sequence : Serial to Parallel
Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Logic Family : 74HC
Logic Type : CMOS
Number of Input Lines : 2
Package / Case : SOIC-14
Propagation Delay Time : 160 ns, 100 ns, 32 ns, 27 ns


Pinout




Specifications

SymbolL	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Vout	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Iin	DC Input Current, per Pin	± 20	mA
Iout	DC Output Current, per Pin	± 25	mA
ICC	DC Supply Current, VCC and GND Pins	± 50	mA
PD	Power Dissipation in Still Air, Plastic DIP†                                        SOIC Package†                                      TSSOP Package†	750 500 450	mW
Tstg	Storage Temperature	65 to + 150
TL	Lead Temperature, 1 mm from Case for 10 Seconds                                              (DIP or SOIC Package)	260

Parameters:

Technical/Catalog Information	MC74HC164ADR2
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Shift Register
Function	Serial to Parallel
Number of Elements	1 - Single
Number of Bits per Element	8
Output Type	Standard
Voltage - Supply	2 V ~ 6 V
Mounting Type	Surface Mount
Package / Case	14-SOIC
Packaging	Tape & Reel (TR)
Operating Temperature	-55°C ~ 125°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC164ADR2 MC74HC164ADR2 MC74HC164ADR2OSTR ND MC74HC164ADR2OSTRND MC74HC164ADR2OSTR
