Features:

• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2 to 6V
• Low Input Current: 1A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 74 FETs or 18.5 Equivalent Gates




Pinout

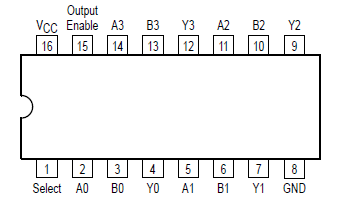

  Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Positive DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
DC Input Voltage (Referenced to GND)
1.5 to VCC + 1.5
V
Vout
DC Output Voltage (Referenced to GND)
0.5 to VCC + 0.5
V
Iin
DC Input Current, per Pin
± 20
mA
Iout
DC Output Current, per Pin
± 25
mA
ICC
DC Supply Current, VCC and GND Pins
± 50
mA
PD
Power Dissipation in Still Air, Plastic or Ceramic DIP†
SOIC Package†
750
500
mW
Tstg
Storage Temperature
65 to + 150
TL
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP, SOIC or TSSOP Package)
(Ceramic DIP)

260
300
* Maximum Ratings are those values beyond which damage to the device may occur.Functional operation
   should be restricted to the Recommended Operating Conditions.
   †Derating - Plastic DIP: 10 mW/ from 65° to 125
   Ceramic DIP: 10 mW from 100° to 125
   SOIC Package: 7 mW/ from 65° to

For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).

This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this highimpedance circuit. For proper operation, Vin and Vout should be constrained to the range GND    (Vin or Vout)    VCC.

Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC). Unused outputs must be left open.



Description

The MC54/74HC158 is identical in pinout to the LS158. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

MC74HC158 route 2 nibbles (A or B) to a single port (Y) as determined by the Select input. The data is presented at the outputs in inverted form for the HC158. A high level on the Output Enable input sets all four Y outputs to a high level for the HC158.
