MC74HC08ADR2

Mounting Type: Surface Mount
Number of Inputs: 2
Features: -
Current - Quiescent (Max): 1µA
Logic Type: AND Gate
Series: 74HC
Voltage - Supply: 2 V ~ 6 V
Current - Output High, Low: 5.2mA, 5.2mA
Logic Level - High: 1.5 V ~ 4.2 V
Operating Temperature: -55°C ~ 125°C
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Number of Circuits: 4
Logic Level - Low: 0.5 V ~ 1.8 V
Max Propagation Delay @ V, Max CL: 13ns @ 6V, 50pF
Packaging: Cut Tape (CT)
Manufacturer: ON Semiconductor
Supplier Device Package: 14-SOICN

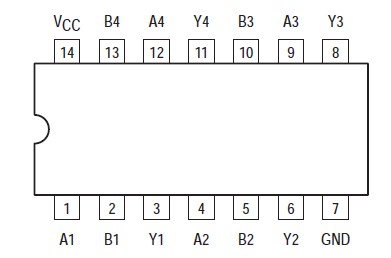

Pinout




Specifications

SymbolL	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Vout	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Iin	DC Input Current, per Pin	± 20	mA
Iout	DC Output Current, per Pin	± 25	mA
ICC	DC Supply Current, VCC and GND Pins	± 50	mA
PD	Power Dissipation in Still Air, Plastic or Ceramic DIP†   SOIC Package†   TSSOP Package†	750 500 450	mW
Tstg	Storage Temperature	65 to + 150
TL	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)	260

Parameters:

Technical/Catalog Information	MC74HC08ADR2
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	AND Gate
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	5.2mA, 5.2mA
Supply Voltage	2 V ~ 6 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	2 V ~ 6 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74HC08ADR2 MC74HC08ADR2 MC74HC08ADR2OSTR ND MC74HC08ADR2OSTRND MC74HC08ADR2OSTR
