MC74HC03AD

Mounting Type: Surface Mount
Number of Inputs: 2
Current - Quiescent (Max): 1µA
Logic Type: NAND Gate
Features: Open Drain
Series: 74HC
Voltage - Supply: 2 V ~ 6 V
Logic Level - High: 1.5 V ~ 4.2 V
Operating Temperature: -55°C ~ 125°C
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Number of Circuits: 4
Logic Level - Low: 0.5 V ~ 1.8 V
Current - Output High, Low: -, 5.2mA
Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
Packaging: Tube
Manufacturer: ON Semiconductor
Supplier Device Package: 14-SOICN

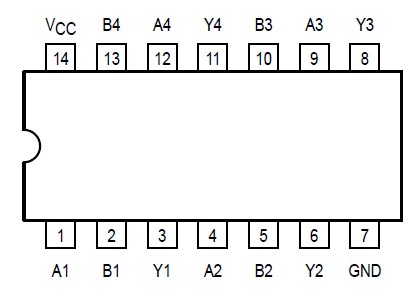

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
Vin	DC Input Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Vout	DC Output Voltage (Referenced to GND)	0.5 to VCC + 0.5	V
Iin	DC Input Current, per Pin	± 20	mA
Iout	DC Output Current, per Pin	± 25	mA
Icc	DC Supply Current, VCC and GND Pins	± 50	mA
PD	Power Dissipation in Still Air Plastic DIP† SOIC Package† TSSOP Package†	750 500 450	mW
Tstg	Storage Temperature	65 to + 150
TL	Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package	260
