MC74F74

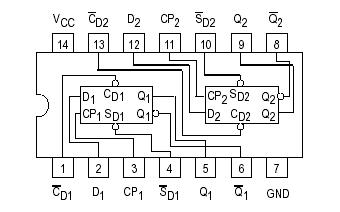

The MC54/74F74 is a dual D-type flip-flop with Direct Clear and Set inputs and complementary (Q, Q) outputs. Information at the input of MC74F74 is transferred to the outputs on the positive edge of the clock pulse. Clock triggering occurs at a voltage level of the clock pulse and is not directly related to the transition time of the positive-going pulse. After the Clock Pulse input threshold voltage has been passed, the Data input is locked out and information present will not be transferred to the outputs until the next rising edge of the Clock Pulse input.
