MC74F537DW

Features:

* Demultiplexing Capability
* 3-State Outputs
* Multiple Input Enable for Expansion
* Polarity Control Input
* ESD Protection > 4000 Volts

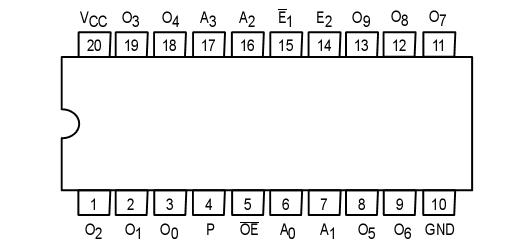

Pinout




Specifications

Symbol	Parameter		Typ	Max	Min	Unit
VCC	Supply Voltage	54, 74	4.5	5.0	5.5	V
TA	Operating Ambient Temperature Range	54	-55	25	125	°C
		74	0	25	70
IOH	Output Current- High	54, 74			-3.0	mA
IOL	Output Current- Low	54, 74			24	mA

Description

The MC54/74F537 is a one-of-ten decoder/demultiplexer with four active HIGH BCD inputs and ten mutually exclusive outputs. A polarity control input determines whether the outputs are active LOW or active HIGH. The MC54/74F537 has 3-state outputs, and a HIGH signal on the Output
Enable (OE ) input of MC74F537DW forces all outputs to the high impedance state. Two input enables,active HIGH E₂ and active LOWE ₁ , are available for demultiplexing data to the selected output in either non-inverted or inverted form. Input codes of MC74F537DW greater than BCD nine cause all outputs to go to the inactive state (i.e., same polarity as the P input).
