Product Details

Description

Features:

* Compares Two 8-Bit Words in 6.5 ns Typical
* Expandable to Any Word Length
* 20-Pin Package

Pinout

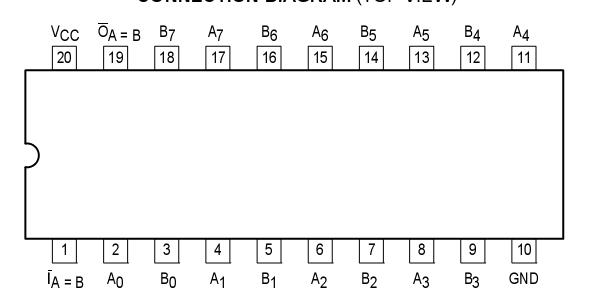

Connection Diagram

Specifications

Symbol	Parameter		Typ	Max	Min	Unit
V_CC	Supply Voltage	54, 74	-10	5.0	5.5	V
T_A	Operating Ambient Temperature Range	54	-55	25	125	°C
T_A	Operating Ambient Temperature Range	74	0	25	70	°C
I_OH	Output Current- High	54, 74			-1.0	mA
I_OL	Output Current- Low	54, 74			20	mA

Description

The MC54/74F521 is an expandable 8-bit comparator. It compares two words of up to eight bits each and provides a LOW output when the two words match bit for bit. The expansion input I _{a = b} also serves as an active-LOW en-able input.
