Product Details

Description

Features:

• Multiplexer Expansion by Tying Outputs Together
• Non-Inverting 3-State Outputs
• Input Clamp Diodes Limit High-Speed Termination Effects
• AC Enhanced Version of the F257

Pinout

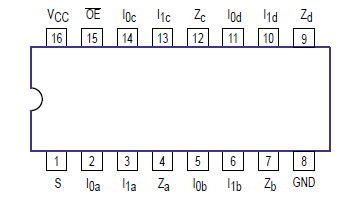

Connection Diagram

Description

The MC74F257 is a quad 2-input multiplexer with 3-state outputs. Four bits of data of MC74F257A from two sources can be selected using a common Data Select input. The four outputs present the selected data in true (non-inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (OE ) input, allowing the outputs to interface directly with bus oriented systems.
