Product Details

Description

Features:

• Noninverting Buffers
• Bidirectional Data Path
• B Outputs Sink 64 mA
• ESD > 4000 Volts

Pinout

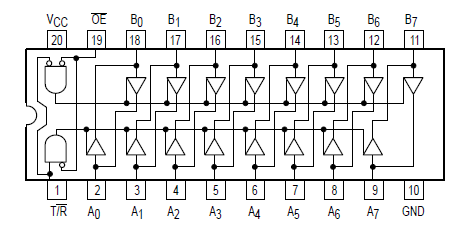

Connection Diagram

Description

The MC54/74F245 contains eight noninverting bidirectional buffers of MC74F245 with 3-state outputs and is intended for bus-oriented applications. Current sinking capability is 24 mA at the A ports and 64 mA at the B ports. The Transmit/Receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active HIGH) enables data from A ports to B ports; Receive (active LOW) enables data from B ports to A ports. The Output Enable input, when HIGH, disables both A and B ports by placing them in a high-Z condition.
