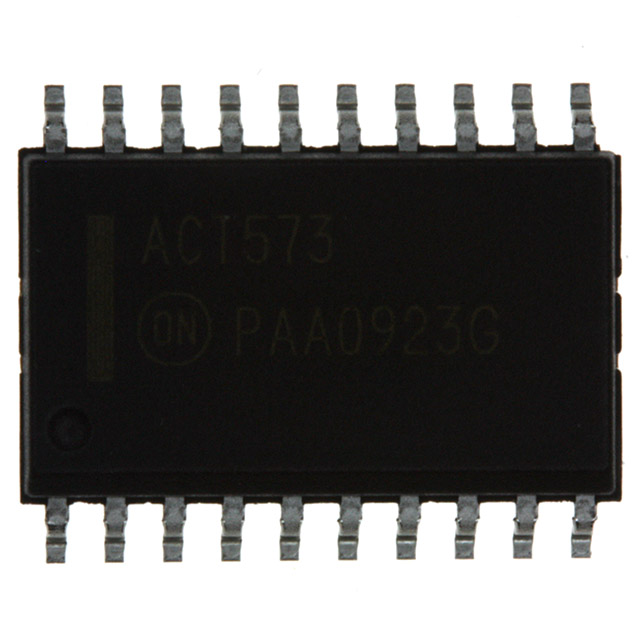

MC74ACT573DWR2G

Number of Circuits : 8
Minimum Operating Temperature : - 40 C
Packaging : Reel
Polarity : Non-Inverting
Number of Output Lines : 3
Supply Voltage - Max : 5.5 V
Maximum Operating Temperature : + 85 C
Package / Case : SOIC-20
Low Level Output Current : 32 mA
Supply Voltage - Min : 4.5 V
High Level Output Current : - 24 mA
Logic Family : 74ACT
Propagation Delay Time : 10.5 ns at 5 V
Logic Type : Buffer/Line Driver


Description

The MC74ACT573DWR2G is one member of the MC74ACT573 series.The MC74ACT573 is a high-speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.The MC74ACT573 is functionally identical to the MC74ACT373 but has inputs and outputs on opposite sides.

Features of the MC74ACT573DWR2G are:(1)inputs and outputs on opposite sides of package allowing easy interface with microprocessors; (2)useful as input or output port for microprocessors; (3)functionally identical to MC74ACT373; (4)3-state outputs for bus interfacing; (5)outputs source/sink 24 mA; (6)'ACT573 has TTL compatible inputs; (7)Pb.free packages are available.

The absolute maximum ratings of the MC74ACT573DWR2G can be summarized as:(1)DC supply voltage:-0.5 V to 7 V;(2)DC input voltage:-0.5 V to Vcc+0.5V;(3)DC output voltage:-0.5 V to Vcc+0.5V V;(4)DC input current, per pin:±20 mA;(5)DC output sink/source current, per pin:±50 mA;(6)storage temperature range:-65 to 150.Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,damage may occur and reliability may be affected.SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages."Typical" parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including "Typicals" must be validated for each customer application by customer's technical experts. SCILLC does not convey any license under its patent rights nor the rights of others.

Parameters:

Technical/Catalog Information	MC74ACT573DWR2G
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Inverting
Package / Case	20-SOIC
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	4.5 V ~ 5.5 V
Current - Output High, Low	24mA, 24mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC74ACT573DWR2G MC74ACT573DWR2G MC74ACT573DWR2GOS ND MC74ACT573DWR2GOSND MC74ACT573DWR2GOS
