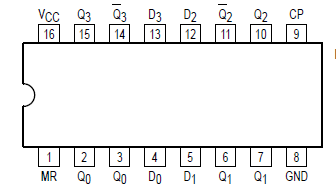

Features: • Outputs Source/Sink 24 mA• 'ACT175 Has TTL Compatible InputsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V Vin DC Input Voltage (Referenced to GND) 0.5 to VCC +0.5 V Vout ...
MC74ACT175: Features: • Outputs Source/Sink 24 mA• 'ACT175 Has TTL Compatible InputsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
Symbol |
Parameter |
Value |
Unit |
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to +7.0 |
V |
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
Iin |
DC Input Current, per Pin |
±20 |
mA |
Iout |
DC Output Sink/Source Current, per Pin |
±50 |
mA |
ICC |
DC VCC or GND Current per Output Pin |
±50 |
mA |
Tstg |
Storage Temperature |
65 to +150 |
The MC74AC/ACT175 is a high-speed quad D flip-flop. The device is useful for general flip-flop MC74ACT175 requirements where clock and clear inputs are common. The information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition. The device has a Master Reset to simultaneously clear all flip-flops, when MR is low.
The MC74AC/ACT175 consists of four edge-triggered D flip-flops with individual D inputs and Q and Q outputs. The Clock (CP) and Master Reset (MR ) are common to all flip-flops. Each D input's state of MC74ACT175 is transferred to the corresponding flip-flop's output following the LOW-to-HIGH Clock (CP) transition. A LOW input to the Master Reset (MR ) will force all Q outputs LOW and Q outputs HIGH independent of Clock or Data inputs. The MC74AC/ACT175 is useful for applications where the Clock and Master Reset are common to all storage elements.
