Product Details

Description

Features:

• Synchronous Counting and Loading
• High-Speed Synchronous Expansion
• Typical Count Rate of 120 MHz
• Outputs Source/Sink 24 mA
• 'ACT160 and 'ACT162 Have TTL Compatible Inputs

Pinout

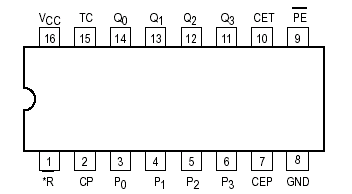

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
V_in	DC Input Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Sink/Source Current, per Pin	±50	mA
I_CC	DC V_CC or GND Current per Output Pin	±50	mA
T_stg	Storage Temperature	65 to +150

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
should be restricted to the Recommended Operating Conditions.

Description

The MC74AC160/74ACT160 and MC74AC162/74ACT162 are high-speed synchronous decade counters operating in the BCD (8421) sequence. They are synchronously presettable for application in programmable dividers and have
two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters. The MC74AC160/74ACT160 has an asynchronous Master Reset input that overrides all other inputs and forces the outputs LOW. The MC74AC162/74ACT162 has a Synchronous Reset input that overrides counting and parallel loading and allows all outputs to be simultaneously reset on the rising edge of the clock.
