Product Details

Description

Features:

• Outputs Source/Sink 24 mA
• 4ACT157 Has TTL Compatible Inputs

Pinout

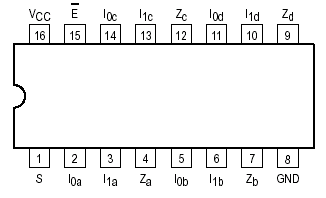

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
V_in	DC Input Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Sink/Source Current, per Pin	±50	mA
I_CC	DC V_CC or GND Current per Output Pin	±50	mA
T_stg	Storage Temperature	65 to +150

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
should be restricted to the Recommended Operating Conditions.

Description

The MC74AC157/74ACT157 is a high-speed quad 2-input multiplexer. Four bits of data from two sources can be selected using the common Select and Enable inputs. The four outputs present the selected data in the true (noninverted) form. The MC74AC157/74ACT157 can also be used as a function generator.
