Features: • Independent Registers for A and B Buses• Multiplexed RealTime and Stored Data Transfers• Choice of True and Inverting Data Paths• 3State Outputs• 300 mil Slim Dual InLine Package• Outputs Source/Sink 24 mA• 'ACT646 Has TTL Compatible InputsPino...
MC74AC646: Features: • Independent Registers for A and B Buses• Multiplexed RealTime and Stored Data Transfers• Choice of True and Inverting Data Paths• 3State Outputs• 300 mil Sl...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Operating range: 38 to 47 Gb/s (min.) (note)Signal regeneration with full-rate clock sig...
• Independent Registers for A and B Buses
• Multiplexed RealTime and Stored Data Transfers
• Choice of True and Inverting Data Paths
• 3State Outputs
• 300 mil Slim Dual InLine Package
• Outputs Source/Sink 24 mA
• 'ACT646 Has TTL Compatible Inputs

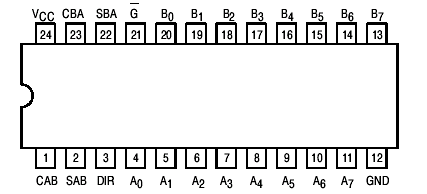

Symbol |
Parameter |
Value |
Unit |
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to +7.0 |
V |
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC +0.5 |
V |
Iin |
DC Input Current, per Pin |
±20 |
mA |
Iout |
DC Output Sink/Source Current, per Pin |
±50 |
mA |
ICC |
DC VCC or GND Current per Output Pin |
±50 |
mA |
Tstg |
Storage Temperature |
65 to +150 |
The MC74AC646/74ACT646 consist of registered bus transceiver circuits, with outputs, Dtype flipflops MC74AC646 and control circuitry providing multiplexed transmission of data directly from the input bus or from the internal storage registers. Data on the A or B bus will be loaded into the respective registers on the LOWtoHIGH transition of the appropriate clock pin (CAB or CBA). The four fundamental data handling functions available are illustrated Figures 1 to 4.
