Features:

• Inputs and Outputs on Opposite Sides of Package Allowing Easy Interface with Microprocessors
• Useful as Input or Output Port for Microprocessors
• Functionally Identical to MC74AC573/74ACT573 but with Inverted Outputs
• Outputs Source/Sink 24 mA
• 'ACT563 Has TTL Compatible Inputs

Pinout

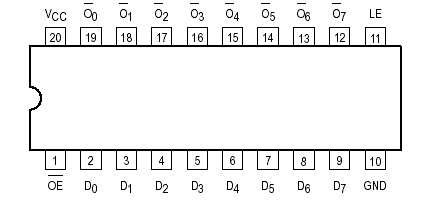

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
V_in	DC Input Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Sink/Source Current, per Pin	±50	mA
I_CC	DC V_CC or GND Current per Output Pin	±50	mA
T_stg	Storage Temperature	65 to +150

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
should be restricted to the Recommended Operating Conditions.

Description

The MC74AC563/74ACT563 is a high-speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.

The MC74AC563/74ACT563 device is functionally identical to the MC74AC573/ 74ACT573, but with inverted outputs.
