MC74AC540

Features: • 3-State Outputs• Inputs and Outputs Opposite Side of Package, Allowing Easier Interface to Microprocessors• Outputs Source/Sink 24 mA• MC74AC540/74ACT540 Provides Inverted Outputs• MC74AC541/74ACT541 Provides Noninverted Outputs• 'ACT540 and 'ACT541 ...

product image

MC74AC540 Picture
See larger image
SeekIC No. : 004416676 Detail

MC74AC540: Features: • 3-State Outputs• Inputs and Outputs Opposite Side of Package, Allowing Easier Interface to Microprocessors• Outputs Source/Sink 24 mA• MC74AC540/74ACT540 Provides...

MC74AC540 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74AC540
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-State Outputs
• Inputs and Outputs Opposite Side of Package, Allowing Easier Interface to Microprocessors
• Outputs Source/Sink 24 mA
• MC74AC540/74ACT540 Provides Inverted Outputs
• MC74AC541/74ACT541 Provides Noninverted Outputs
• 'ACT540 and 'ACT541 Have TTL Compatible Inputs


Pinout

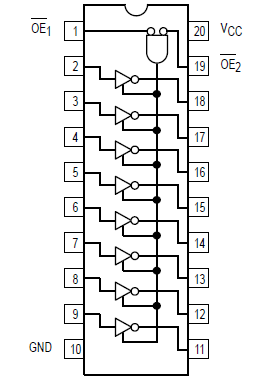

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.


Description

The MC74AC540/74ACT540 and MC74AC541/74ACT541 are octal buffer/line drivers designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers. The MC74AC541/74ACT541 is a noninverting option of the MC74AC540/74ACT540.

MC74AC540 are similar in function to the MC74AC240/74ACT240 and MC74AC244/74ACT244 while providing flow-through architecture (inputs on opposite side from outputs). This pinout arrangement makes these devices especially useful as output ports for microprocessors, allowing ease of layout and greater PC board density.
