MC74AC534

Features: • Edge-Triggered D-Type Inputs• Buffered Positive Edge-Triggered Clock• 3-State Outputs for Bus Oriented ApplicationsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V Vin DC Input V...

product image

MC74AC534 Picture
See larger image
SeekIC No. : 004416675 Detail

MC74AC534: Features: • Edge-Triggered D-Type Inputs• Buffered Positive Edge-Triggered Clock• 3-State Outputs for Bus Oriented ApplicationsPinoutSpecifications Symbol Parameter Va...

MC74AC534 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74AC534
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Edge-Triggered D-Type Inputs
• Buffered Positive Edge-Triggered Clock
• 3-State Outputs for Bus Oriented Applications


Pinout

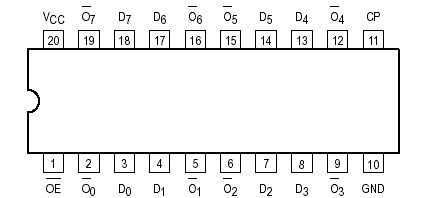

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.


Description

The MC74AC534/74ACT534 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip flops MC74AC534. The 'AC/ACT534 is the same as the 'AC/ACT374 except that the outputs are inverted.
