MC74AC521

Features: • Compares Two 8-Bit Words in 6.5 ns Typ• Expandable to Any Word Length• 20-Pin Package• Outputs Source/Sink 24 mA• 'ACT521 has TTL-Compatible InputsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to G...

product image

MC74AC521 Picture
See larger image
SeekIC No. : 004416673 Detail

MC74AC521: Features: • Compares Two 8-Bit Words in 6.5 ns Typ• Expandable to Any Word Length• 20-Pin Package• Outputs Source/Sink 24 mA• 'ACT521 has TTL-Compatible InputsPinoutSpe...

MC74AC521 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74AC521
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compares Two 8-Bit Words in 6.5 ns Typ
• Expandable to Any Word Length
• 20-Pin Package
• Outputs Source/Sink 24 mA
• 'ACT521 has TTL-Compatible Inputs


Pinout

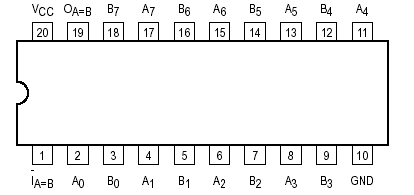

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.


Description

The MC74AC521/74ACT521 is an expandable 8-bit comparator. It compares two words of up to eight bits each and provides a LOW output when  the two words match bit for bit. The expansion input IA=B also serves as an active LOW enable input.
